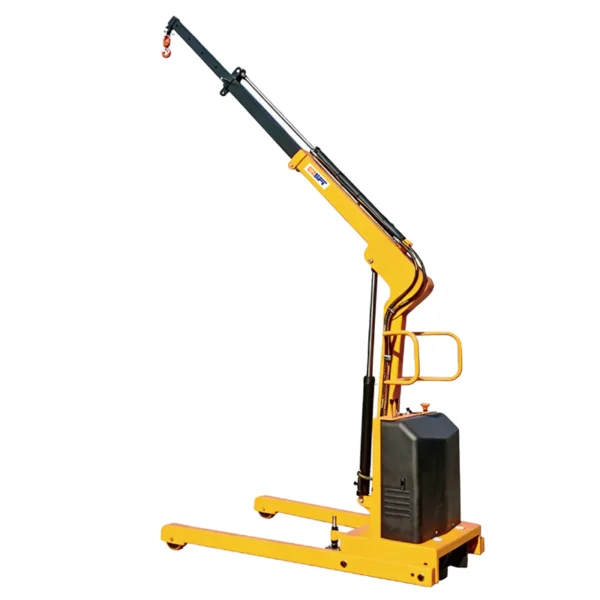

The YLD01 Semi-Electric Mobile Floor Crane is designed for industrial lifting, positioning and material handling applications where flexibility and compact operation are important. Combining electrically powered lifting with manual travel, this mobile crane provides a practical solution for workshops, manufacturing plants, maintenance areas and warehouses where larger lifting equipment or conventional forklifts may not be suitable.

Unlike fixed cranes that require permanent installation, a mobile floor crane can be moved between different work areas according to production requirements. This makes it particularly useful for equipment maintenance, machine assembly, component installation and handling loads in restricted working spaces. Mobile floor cranes with telescopic booms are widely used in industrial environments because they provide adjustable reach while maintaining a relatively compact footprint.

Electric Lifting with Manual Travel

The YLD01 adopts a semi-electric operating system, combining powered lifting with hand-pushed movement.

The electric lifting system reduces the physical effort required during repeated lifting operations, while manual travel gives the operator direct control when moving and positioning the crane around the workplace.

This combination is especially suitable for applications that require frequent lifting but do not require a fully powered traveling system. Similar semi-electric floor cranes are commonly selected for workshops, assembly lines and industrial material handling because they balance lifting efficiency with simple maneuverability.

The YLD01 is equipped with a 12V/120Ah battery and 1.6kW hoisting motor, providing power for the lifting system.

Adjustable Telescopic Boom

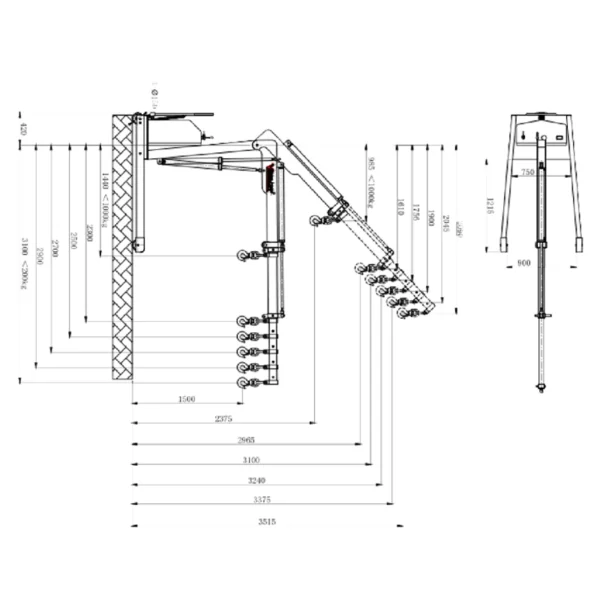

A key feature of the YLD01 is its adjustable telescopic single-arm boom.

The boom can be positioned to provide different working reaches and lifting angles, allowing the crane to approach machinery, equipment or loads from different positions. This is particularly useful when the lifting point cannot be reached directly by a forklift or when the surrounding workspace limits access.

Telescopic boom designs are widely used on mobile floor cranes because adjustable reach helps operators position loads over machinery, workbenches and other industrial equipment.

For applications where lifting capacity and boom reach are critical, customers should confirm the required load weight, lifting height and horizontal reach before selecting a configuration.

Designed for Restricted Work Areas

One of the main advantages of a mobile floor crane is its ability to work in areas where larger lifting equipment may be inconvenient.

The YLD01 can be manually moved around production equipment, maintenance areas and workshop spaces. Its mobile base allows the operator to position the crane close to the lifting point, making it useful for:

• Machine component installation
• Equipment maintenance
• Motor and mechanical part handling
• Assembly line operations
• Workshop material positioning
• Warehouse lifting
• Loading and unloading tasks
• Handling non-palletized industrial loads

Compact floor cranes are commonly used where forklifts cannot easily approach the load or where permanent overhead lifting equipment is unnecessary.

Foldable Design for Storage and Transport

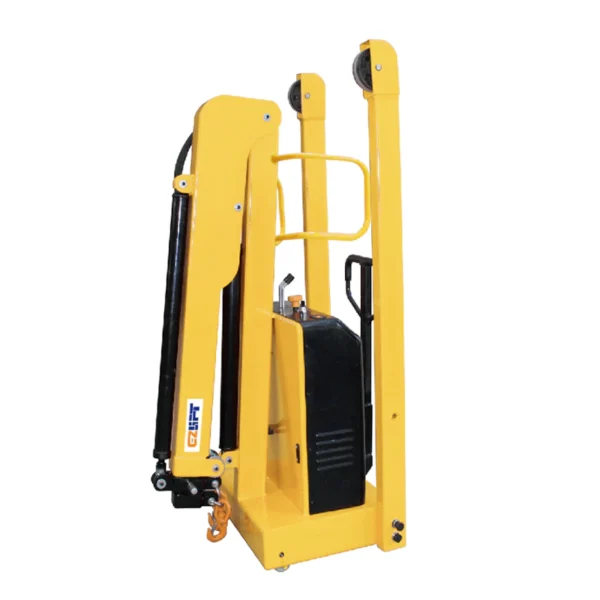

The YLD01 features foldable outriggers, helping reduce its overall footprint when the crane is not in operation.

According to the supplied product specifications, the folded dimensions are approximately:

1100 × 800 × 1900 mm

This design is useful for facilities where floor space is limited and also makes the equipment easier to prepare for transportation or storage.

Foldable legs and collapsible structures are common advantages of portable floor cranes because they allow the equipment to occupy less space between lifting jobs.

Mobile and Maneuverable Structure

The YLD01 uses Ø150 × 50 mm front and rear wheels and has a specified turning radius of 1750 mm.

The mobile chassis allows operators to reposition the crane within workshops and factories without permanently occupying a fixed lifting station.

Its compact mobile design can therefore complement forklifts, pallet trucks and other material handling equipment rather than replacing them in every application.

Suitable for Industrial Lifting and Positioning

The YLD01 is particularly suitable for customers who need to lift and position components close to machines or production equipment.

Typical industries may include:

Machinery Manufacturing
For positioning motors, components, molds and mechanical assemblies.

Equipment Maintenance
For removing or installing parts during inspection, repair and servicing.

Production & Assembly
For transferring and positioning components between production processes.

Warehouse Operations
For handling individual loads where pallet-based forklift operation is not practical.

Industrial Workshops
For flexible lifting tasks that occur at different locations throughout the facility.

The concept is similar to other mobile floor cranes used internationally for machinery assembly, maintenance and industrial positioning.

Key Features

Semi-Electric Operation
Electric-powered lifting combined with manual travel.

Telescopic Single-Arm Boom
Adjustable boom reach for different lifting and positioning requirements.

Wide Working Range
Suitable for applications requiring different lifting angles and approach positions.

Compact Mobile Design
Designed for workshops and areas where forklift access may be restricted.

Foldable Outriggers
Reduces overall size for storage and transportation.

Industrial Mobile Chassis
Provides practical movement between different working areas.

Application-Oriented Configuration
Suitable for machinery maintenance, assembly, warehouses and industrial material positioning.

---

Technical Specifications
