All-Electric Rotating Mini Crane YLA01

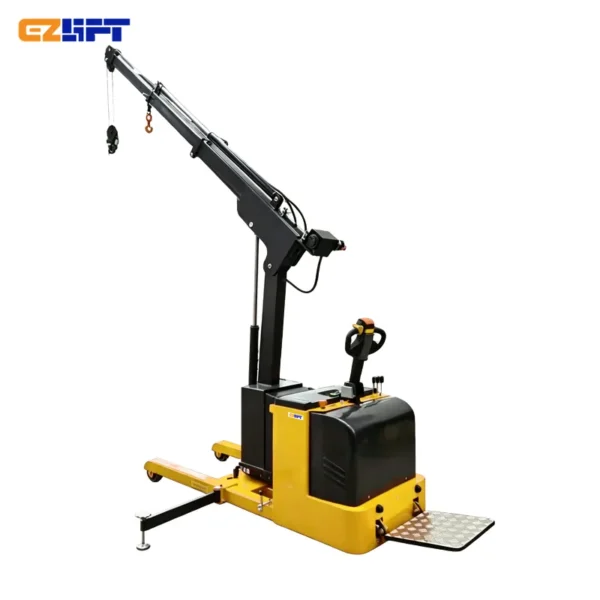

The all-electric rotating mini crane is a small mobile crane with integrated travel, steering, hydraulic station, and remote hook operation.
It uses a multifunctional control handle, stepless travel regulator, high-power steering switch, and maintenance-free batteries.
Key Features
- All-electric small mobile crane design.
- Multifunctional control handle with stepless speed regulation.
- High-power steering switch and hydraulic station.
- Three-section boom with wide lifting range.
- Hook can be operated up and down by remote control.
Applications
Use this rotating mini crane for mobile lifting, machinery maintenance, equipment installation, and compact lifting around production sites.
Model Specifications
| Specification | YLA01 |
|---|---|
| Boom length positions | 1620 / 2470 / 2670 / 2780 / 3070 / 3270 mm |
| Rated load capacity | 1000 / 650 / 562.5 / 475 / 387.5 / 300 kg |
| Boom rotation angle | ±60° |
| Maximum climbing ability | 5° |
| Turning radius | 2150 mm |
| Front wheel size | Ø150 x 50 mm |
| Rear wheel size | Ø250 x 80 mm |
| Drive motor power | 1.2 kW |
| Lifting motor power | 2.2 kW |
| Battery voltage/capacity | 24/240 |
| Battery specifications | 24/20 |
| Net weight | 1070 kg |
| Minimum overall dimensions | 2200 x 1100 x 2155 mm |
Buyer Notes
Before ordering, confirm the handled drum or load size, loaded weight, working height, aisle conditions, quantity, destination, and whether any special bracket, fork, platform, or weighing configuration is required. Product photos are intentionally left blank in this draft and can be added later.
FAQ
What is the maximum listed load?
The highest listed load position is 1000 kg.
Does the boom rotate?
Yes. The catalog lists ±60° boom rotation.
How is the hook controlled?
The catalog says the hook can be operated up and down by remote control.
Inquiry CTA
Need all-electric rotating mini crane for your warehouse or production site? Send your load dimensions, weight, application photos, working height, and quantity so EASY LIFT can confirm the suitable model and quotation.
Buy All-Electric Rotating Mini Crane from EASY LIFT
all-electric rotating mini crane buyers usually compare load capacity, working height, compatible drum or load size, operating space, wheel type, and optional configurations before requesting a quotation. This All-Electric Rotating Mini Crane YLA01 draft gives purchasing teams a clear starting point for model selection and supplier communication.
All-Electric Rotating Mini Crane Selection Checklist
- Confirm the required load capacity and maximum working height.
- Confirm the handled object size, such as drum size, roll diameter, fork width, platform size, or boom reach.
- Check whether the job needs manual hydraulic, semi-electric, or all-electric operation.
- Review aisle width, floor condition, turning radius, truck loading height, and storage space.
- Send application photos before quotation if the handled load is non-standard.
