Semi Electric Single Arm Crane YLD01 | Mobile Workshop Crane

Semi Electric Single Arm Crane YLD01 | Mobile Workshop Crane

semi electric single arm crane YLD01 is a compact mobile lifting crane designed for factories, workshops, warehouses, maintenance areas, and material handling sites that need electric lifting with hand-pushed travel. The machine uses an electric hoisting system and telescoping boom to replace forklift lifting in areas where a forklift cannot easily enter, turn, or position a suspended load.

This semi electric single arm crane is suitable for lifting and positioning machine parts, molds, tools, packed goods, maintenance components, and other loads that need controlled vertical movement. Compared with a forklift attachment, the crane can work as an independent mobile lifting unit. It is especially useful when buyers need a narrow, foldable, and easy-to-store lifting solution for daily workshop jobs.

Key Features

• Electric lifting and telescoping boom design for compact mobile crane use.
• Hand-pushed travel helps operators move the crane without relying on forklift access.
• Adjustable extra-long boom provides a wide lifting angle range for different load positions.
• Foldable outriggers reduce packing volume and support easier transport or storage.
• Rotatable hook allows flexible load positioning during maintenance and production handling.
• 12V/120Ah battery and 1.6kW hoisting motor are listed for the YLD01 model.

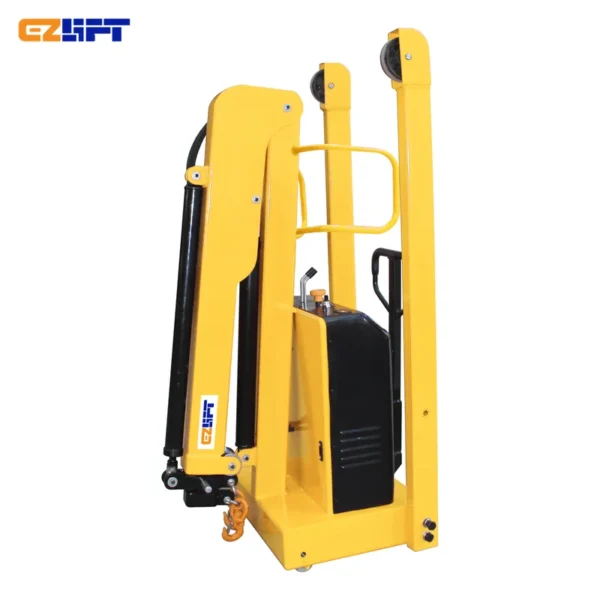

• Compact folded dimensions make the semi electric single arm crane practical for space-limited workshops.

Applications

The YLD01 semi electric single arm crane can be used for equipment maintenance, mold handling, production line loading, warehouse repair tasks, small machine part lifting, and temporary mobile crane work. It is also a useful option for sites where forklift travel is restricted by aisle width, ground conditions, machine layout, or overhead working position.

Industrial buyers often choose this type of mobile workshop crane when the load must be lifted carefully rather than pushed, tilted, or carried on forks. The telescoping boom helps reach the load, while the electric hoist supports controlled lifting. Before ordering, confirm the load weight, lifting radius, lifting height, floor condition, and whether the crane needs to move through doors, aisles, or container areas.

How to Choose a Semi Electric Single Arm Crane

Choosing the right semi electric single arm crane starts with the real working radius. The longer the boom extends, the lower the safe working load will usually be, so buyers should not select only by the highest rated lifting value. Send the load weight, load size, hook point, required lifting height, and working distance from the crane body to the load center.

Also check the turning radius, folded height, doorway clearance, battery charging habit, and daily lifting frequency. If the crane will be moved between workstations, the floor should be smooth enough for safe hand-pushed travel. If the crane will be used near production equipment, confirm whether the foldable outrigger layout can open fully without hitting machines or racks.

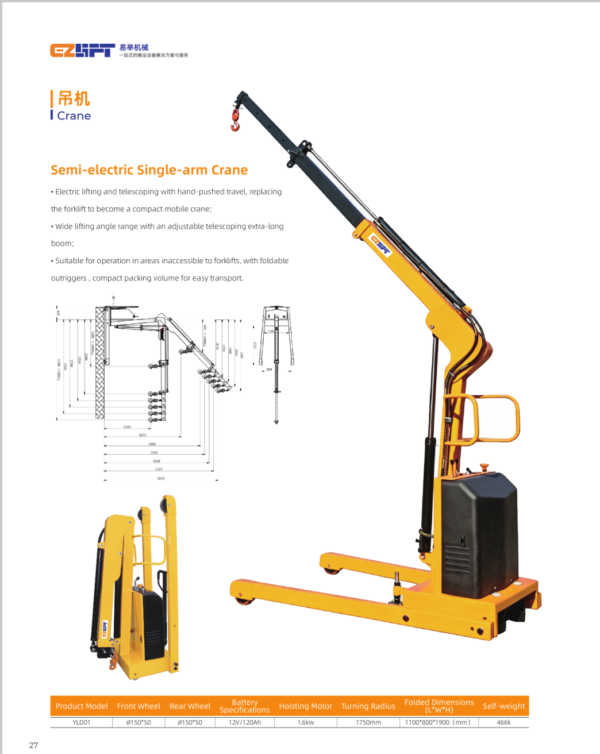

Model Specifications

Product Model	Front Wheel	Rear Wheel	Battery Specifications	Hoisting Motor	Turning Radius	Folded Dimensions (L*W*H)	Self-weight
YLD01	�˜150*50	�˜150*50	12V/120Ah	1.6kW	1750mm	1100*800*1900 mm	466kg

Semi Electric Single Arm Crane Safety and Quotation Checks

A semi electric single arm crane should be selected according to load weight, boom extension, floor condition, operator training, and the actual lifting radius. The hook, battery, wheel condition, outrigger position, and boom locking position should be checked before use. Buyers should also follow local workplace rules and the equipment instructions supplied with the crane.

For general mobile lifting and industrial handling planning, buyers can browse related EASY LIFT material handling products and compare cranes, forklift attachments, stackers, and drum handling equipment. For broader workplace equipment safety reference, review OSHA powered industrial truck guidance together with local safety requirements.

Before quotation, send the load photo, load dimensions, maximum load weight, required lifting height, lifting radius, working site photo, destination country, order quantity, and any special packing or color requirement. These details help EASY LIFT confirm whether YLD01 is suitable or whether another lifting product should be recommended.

Buyer Notes

• Confirm the actual load center and do not rely only on the maximum catalog lifting value.
• Check whether the working site allows full outrigger opening and safe crane movement.
• Confirm battery charging arrangement, daily lifting cycles, and storage space.
• Share photos or drawings if the crane must work near equipment, racks, trucks, or containers.
• Final capacity should be confirmed by EASY LIFT according to the actual lifting radius and site condition.

FAQ

Is YLD01 fully electric?

The catalog describes electric lifting and telescoping with hand-pushed travel. This means the lifting function is electric, while movement is manually pushed.

What is the hoisting motor power?

The YLD01 model lists a 1.6kW hoisting motor.

What is the battery specification?

The listed battery specification is 12V/120Ah.

What is the folded size?

The catalog lists folded dimensions of 1100*800*1900 mm.

What should buyers confirm before ordering?

Buyers should confirm load weight, lifting radius, lifting height, working floor, aisle width, doorway clearance, and daily use frequency before ordering a semi electric single arm crane.

Inquiry CTA

Send your YLD01 semi electric single arm crane inquiry with load weight, lifting radius, required height, working environment, quantity, and destination. EASY LIFT can help confirm the suitable configuration and quotation details.
