All-Electric Single Boom Crane YLH01
The YLH01 all-electric single boom crane combines electric travel drive, hydraulic lifting, hydraulic forward travel, and hydraulic extension in a counterweight chassis.
It is designed for ergonomic mobile lifting where height and boom angle need adjustment for individual requirements.

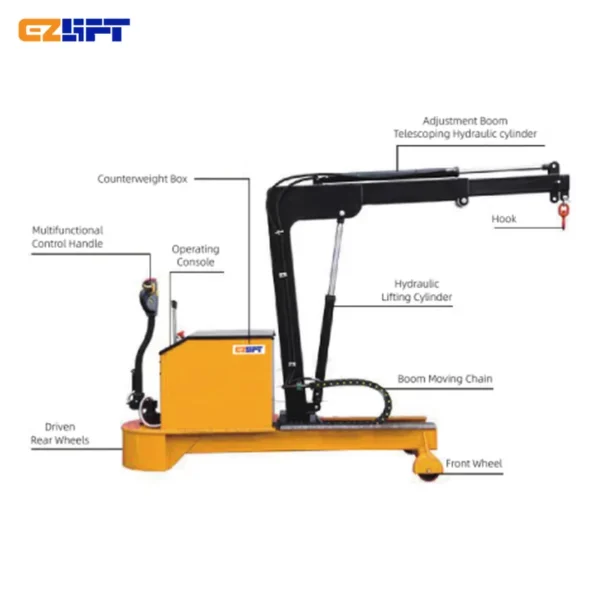

Key Features
- Electric travel drive with hydraulic lifting and forward travel.
- Hydraulic extension integrated counterweight type.
- Height and angle can be adjusted according to requirements.
- Maintenance-free Sail batteries listed in the catalog.
- Foldable safety valve design for compact storage.
Applications
Use the YLH01 for lifting in areas difficult for forklifts to access, equipment installation, machinery maintenance, and workshop material handling.
Model Specifications
| Specification | YLH01 |
|---|---|
| Self-weight | 725 kg |
| Counterweight | 600 kg |
| Battery specifications | 12/120 x 2 |
| Battery dimensions | 406 x 172 x 211 mm |
| Battery weight | 30 x 2 kg |
| Hoisting motor | 2.2 kW |
| Drive motor power | 0.75 kW |
| Travel speed | 5 km/h |
| Overall dimensions | 2200 x 1015 x 1950 mm |
| Front wheel | Ø150 x 70 mm |
| Drive wheel | Ø250 x 80 mm |
Buyer Notes
Before ordering, confirm the handled drum or load size, loaded weight, working height, aisle conditions, quantity, destination, and whether any special bracket, fork, platform, or weighing configuration is required. Product photos are intentionally left blank in this draft and can be added later.
FAQ
Is this crane all-electric?
The catalog describes electric travel drive combined with hydraulic functions.
What is the self-weight?
The listed self-weight is 725 kg.
What is the travel speed?
The catalog lists 5 km/h.
Inquiry CTA
Need all-electric single boom crane for your warehouse or production site? Send your load dimensions, weight, application photos, working height, and quantity so EASY LIFT can confirm the suitable model and quotation.
Buy All-Electric Single Boom Crane from EASY LIFT
all-electric single boom crane buyers usually compare load capacity, working height, compatible drum or load size, operating space, wheel type, and optional configurations before requesting a quotation. This All-Electric Single Boom Crane YLH01 draft gives purchasing teams a clear starting point for model selection and supplier communication.
All-Electric Single Boom Crane Selection Checklist
- Confirm the required load capacity and maximum working height.
- Confirm the handled object size, such as drum size, roll diameter, fork width, platform size, or boom reach.
- Check whether the job needs manual hydraulic, semi-electric, or all-electric operation.
- Review aisle width, floor condition, turning radius, truck loading height, and storage space.
- Send application photos before quotation if the handled load is non-standard.
