Lightweight Manual Lifter PJ/PS/PF Series
The lightweight manual lifter is a compact work positioning solution for lifting and moving goods in warehouses, workshops, assembly areas, and production stations. The catalog shows platform type, fixed fork type, and adjustable fork type configurations, allowing buyers to choose the handling structure that best matches their load.
This series is listed with 400 kg rated load capacity and lifting height options from 850 mm to 1500 mm depending on model. It is a practical alternative when a small manual lifter is more suitable than a full-size stacker.
Key Features
- Scientific and rational structure for easy and flexible operation.
- Mast is made of high-quality cold-drawn seamless steel pipe.
- Multi-pass chrome plating supports durability and rust resistance.
- Customizable platforms are available according to the catalog.

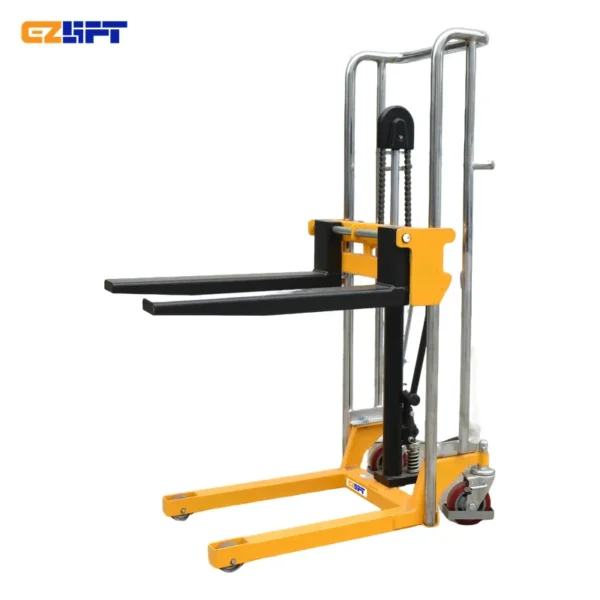

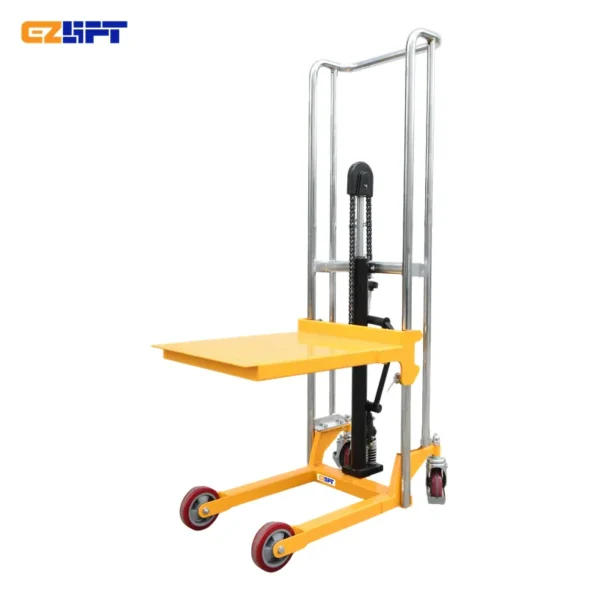

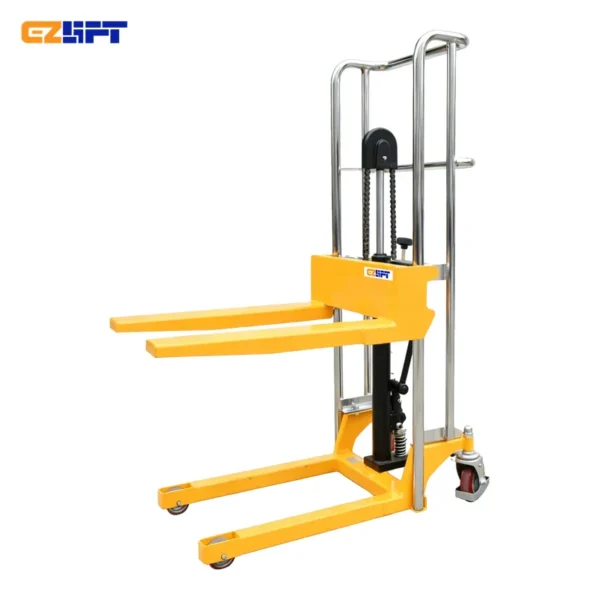

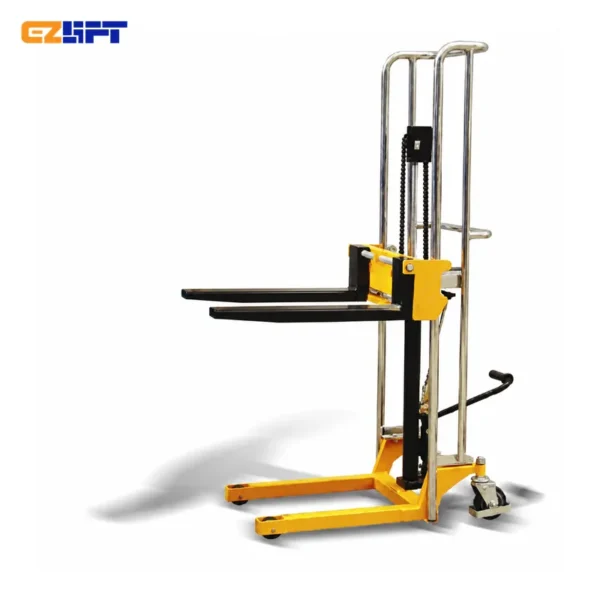

- Platform, fixed fork, and adjustable fork configurations are available.
- Catalog states compliance with European Standard EN 1757-1:2001.
Applications
The lightweight manual lifter can support small goods positioning, production line feeding, light warehouse handling, workstation lifting, mold or component movement, and packing station support. The adjustable fork type is useful when load width varies, while the platform type is useful for boxed or flat-bottom items.
Model Specifications
| Specification | 4085 Series | 4120 Series | 4150 Series |
|---|---|---|---|
| Platform type model | PS4085 | PS4120 | PS4150 |
| Fixed fork type model | PJ4085 | PJ4120 | PJ4150 |
| Adjustable fork type model | PF4085 | PF4120 | PF4150 |
| Rated load capacity | 400 kg | 400 kg | 400 kg |
| Max. height of fork/platform | 850 mm | 1200 mm | 1500 mm |
| Minimum fork height | 85 mm | 85 mm | 85 mm |
| Minimum platform height | 200 mm | 200 mm | 200 mm |
| Fork/platform length | 650 mm | 650 mm | 650 mm |
| Width of platform/fixed fork | 550 mm | 550 mm | 550 mm |
| Adjustable fork width | 235-500 mm | 235-500 mm | 235-500 mm |
| Overall height (fixed/adjustable) | 1060 mm | 1410 mm | 1710 mm |
| Overall height (platform type) | 970 mm | 1310 mm | 1610 mm |
| Overall width | 590 mm | 590 mm | 590 mm |
| Overall length | 1040 mm | 1040 mm | 1040 mm |
| Net weight (platform type) | 72 kg | 78 kg | 83 kg |
| Net weight (fixed fork) | 70 kg | 76 kg | 82 kg |
| Net weight (adjustable fork) | 75 kg | 81 kg | 85 kg |
| Optional platform size | 660 x 580 mm | 660 x 580 mm | 660 x 580 mm |
Buyer Notes
Before quotation, confirm whether the load needs a platform, fixed forks, or adjustable forks. Share load size, weight, required lifting height, working aisle width, and whether an optional platform size is needed.
FAQ
What configurations are available?
The catalog shows platform type, fixed fork type, and adjustable fork type configurations.
What is the rated load capacity?
The listed rated load capacity is 400 kg across the 4085, 4120, and 4150 series.
What lifting heights are available?
The catalog lists maximum fork/platform heights of 850 mm, 1200 mm, and 1500 mm depending on model.
Inquiry CTA
Need a lightweight manual lifter for work positioning? Send your load size, load weight, desired lift height, fork/platform preference, and quantity so EASY LIFT can confirm the suitable model.
Buy Lightweight Manual Lifter from EASY LIFT
lightweight manual lifter buyers usually compare load capacity, working height, compatible drum or load size, operating space, wheel type, and optional configurations before requesting a quotation. This Lightweight Manual Lifter PJ/PS/PF Series draft gives purchasing teams a clear starting point for model selection and supplier communication.
Lightweight Manual Lifter Selection Checklist
- Confirm the required load capacity and maximum working height.
- Confirm the handled object size, such as drum size, roll diameter, fork width, platform size, or boom reach.
- Check whether the job needs manual hydraulic, semi-electric, or all-electric operation.
- Review aisle width, floor condition, turning radius, truck loading height, and storage space.
- Send application photos before quotation if the handled load is non-standard.
