Hydraulic Oil Drum Transporter WA30A/WA30B

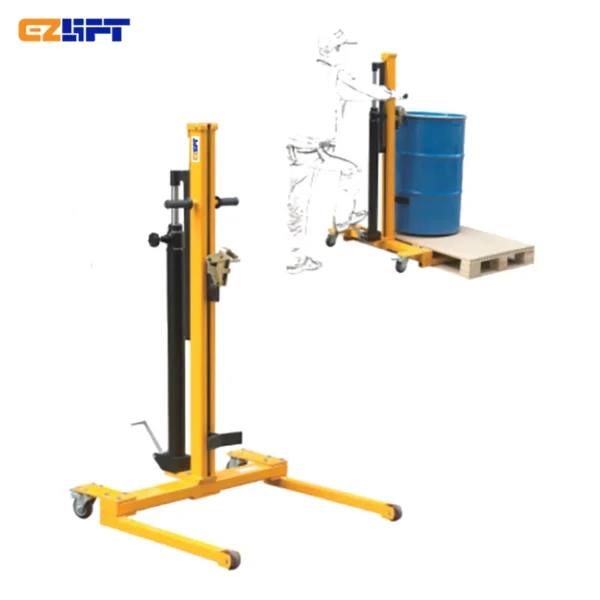

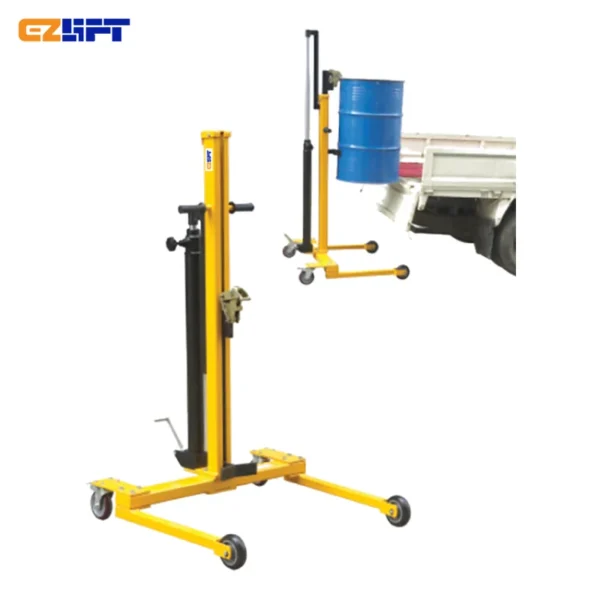

The WA30 hydraulic oil drum transporter is designed for loading, unloading, and transporting oil drums on small trucks and uneven ground.
WA30A and WA30B both handle 55 gallon drums, with different ground clearance and wheel specifications.
Key Features
- High-quality cylinder for effort-saving and swift operation.
- Eagle beak clamping mechanism for safe drum handling.
- Designed for oil drum transport on small trucks.
- WA30A features large moving wheels for uneven ground.
- Detachable structure supports easier transportation and installation.
Applications
Use the WA30 series for drum movement around trucks, warehouses, workshops, and loading areas.
Model Specifications
| Specification | WA30A | WA30B |
|---|---|---|
| Rated load capacity | 300 kg | 300 kg |
| Compatible drum | 55 gallon (572 x 900) | 55 gallon (572 x 900) |
| Support leg ground clearance | 92 mm | 57 mm |
| Hydraulic cylinder stroke | 805 mm | 805 mm |
| Front wheel spec | Ø125 x 30 mm PU | Ø64 x 37 mm PU |
| Rear wheel spec | Ø125 x 30 mm PU | Ø80 x 32 mm PU |
| Net weight | 18 kg | 23 kg |
Buyer Notes
Before ordering, confirm the handled drum or load size, loaded weight, working height, aisle conditions, quantity, destination, and whether any special bracket, fork, platform, or weighing configuration is required. Product photos are intentionally left blank in this draft and can be added later.
FAQ
What is the rated load?
Both WA30A and WA30B list 300 kg rated load capacity.
What drum size is supported?
The catalog lists 55 gallon drums.
Which model is better for uneven ground?
WA30A is described as having large moving wheels for uneven ground.
Inquiry CTA
Need hydraulic oil drum transporter for your warehouse or production site? Send your load dimensions, weight, application photos, working height, and quantity so EASY LIFT can confirm the suitable model and quotation.
Buy Hydraulic Oil Drum Transporter from EASY LIFT
hydraulic oil drum transporter buyers usually compare load capacity, working height, compatible drum or load size, operating space, wheel type, and optional configurations before requesting a quotation. This Hydraulic Oil Drum Transporter WA30A/WA30B draft gives purchasing teams a clear starting point for model selection and supplier communication.
Hydraulic Oil Drum Transporter Selection Checklist
- Confirm the required load capacity and maximum working height.
- Confirm the handled object size, such as drum size, roll diameter, fork width, platform size, or boom reach.
- Check whether the job needs manual hydraulic, semi-electric, or all-electric operation.
- Review aisle width, floor condition, turning radius, truck loading height, and storage space.
- Send application photos before quotation if the handled load is non-standard.
Product Image ALT Text to Use Later
When uploading the product image manually, use this ALT text: hydraulic oil drum transporter Hydraulic Oil Drum Transporter WA30A/WA30B EASY LIFT product photo.
Related Product Links
Related internal category: Drum Handling Equipment. You can also compare this product with the Drum Handling Equipment range when the application involves drum lifting, rotating, pouring, or transport.
