Mechanical Oil Drum Rotator HD80A/HD80B/HD80C
mechanical oil drum rotator – mechanical oil drum rotator product page for Mechanical Oil Drum Rotator HD80A/HD80B/HD80C, including key features, applications, model specifications, FAQ
mechanical oil drum rotator – The mechanical oil drum rotator combines lifting, handling, rotating, and pouring functions for 55 gallon steel drums and selected plastic drum applications.
Table of Contents
Mechanical Oil Drum Rotator HD80A/HD80B/HD80C

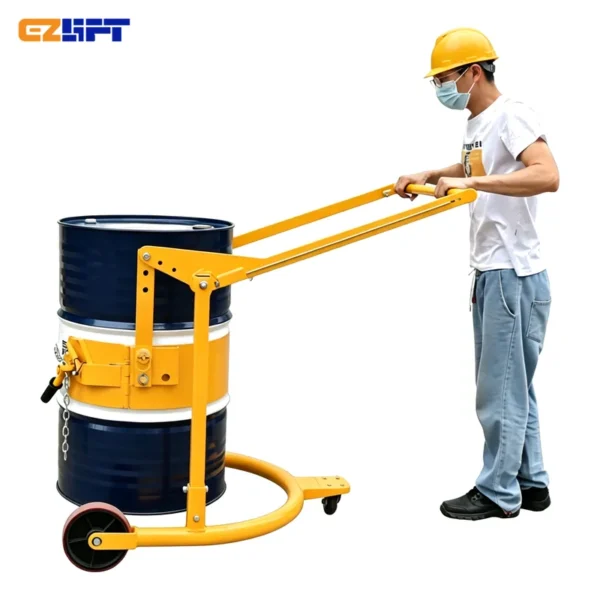

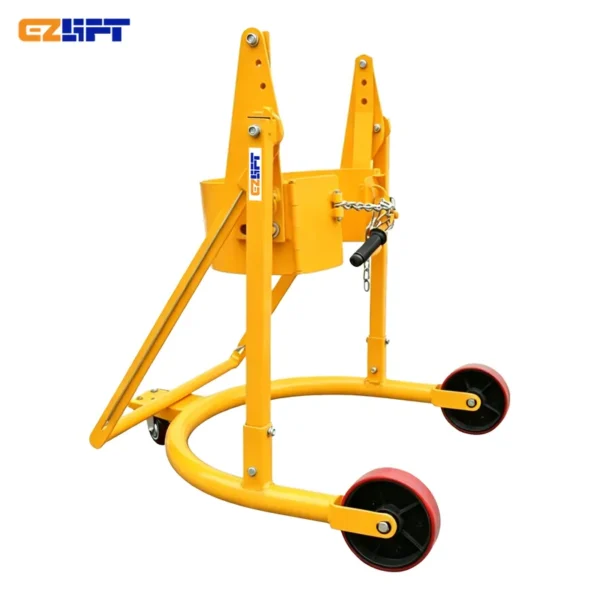

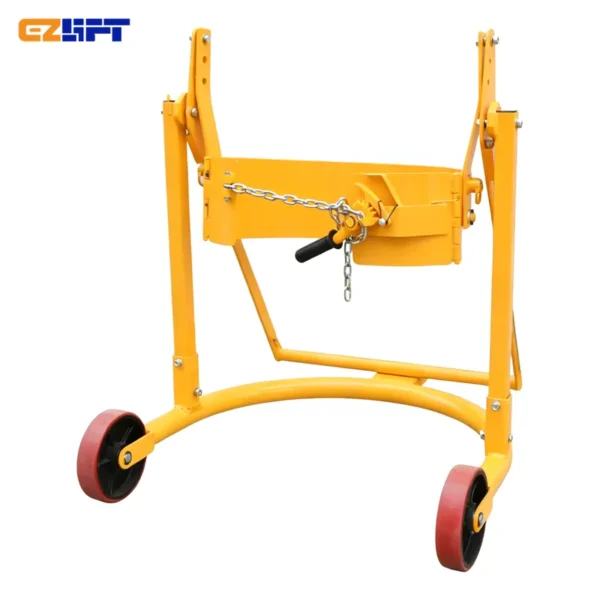

The mechanical oil drum rotator combines lifting, handling, rotating, and pouring functions for 55 gallon steel drums and selected plastic drum applications.
HD80A is for 55 gallon steel drums, while HD80B can handle 55 gallon steel drums and 210L plastic drums.
Key Features
- Combines lifting, handling, rotating, and pouring.
- T-stud locking pull rings can lock drums horizontally or vertically.
- Releasing the locking pull rings allows the drum to tilt for stirring or distributing contents.
- HD80A is designed for 55 gallon steel drums.
- HD80B can handle steel drums and 210L plastic drums.
Applications
Use the mechanical oil drum rotator for drum pouring, mixing support, horizontal/vertical positioning, and production material handling.
Model Specifications
| Specification | HD80A | HD80B | HD80C |
|---|---|---|---|
| Rated load capacity | 363 kg | 363 kg | 363 kg |
| Ground clearance horizontal | 150/270/350 mm | 200/300/350 mm | 200/300/350 mm |
| Ground clearance vertical | 200 mm | 200 mm | 200 mm |
| Net weight | 50 kg | 45 kg | 46 kg |
| Caster specifications | Ø200×50 / Ø100×30 | Ø200×50 / Ø100×50 | Ø200×50 / Ø100×50 |
Buyer Notes
Before ordering, confirm the handled drum or load size, loaded weight, working height, aisle conditions, quantity, destination, and whether any special bracket, fork, platform, or weighing configuration is required. Product photos are intentionally left blank in this draft and can be added later.
FAQ
What does the rotator do?
It supports lifting, handling, rotating, and pouring functions.
Which model handles plastic drums?
The catalog says HD80B can handle 55 gallon steel drums and 210L plastic drums.
Can it hold drums vertically?
Yes. The locking pull rings can lock the drum in horizontal or vertical positions.
Inquiry CTA
Need mechanical oil drum rotator for your warehouse or production site? Send your load dimensions, weight, application photos, working height, and quantity so EASY LIFT can confirm the suitable model and quotation.
Buy Mechanical Oil Drum Rotator from EASY LIFT
mechanical oil drum rotator buyers usually compare load capacity, working height, compatible drum or load size, operating space, wheel type, and optional configurations before requesting a quotation. This Mechanical Oil Drum Rotator HD80A/HD80B/HD80C draft gives purchasing teams a clear starting point for model selection and supplier communication.
Mechanical Oil Drum Rotator Selection Checklist
- Confirm the required load capacity and maximum working height.
- Confirm the handled object size, such as drum size, roll diameter, fork width, platform size, or boom reach.
- Check whether the job needs manual hydraulic, semi-electric, or all-electric operation.
- Review aisle width, floor condition, turning radius, truck loading height, and storage space.
- Send application photos before quotation if the handled load is non-standard.
